Titan 11950 Ratcheting Wire Terminal Crimping Set, 7-Piece

Brand: Titan

Color: Factory

Features:

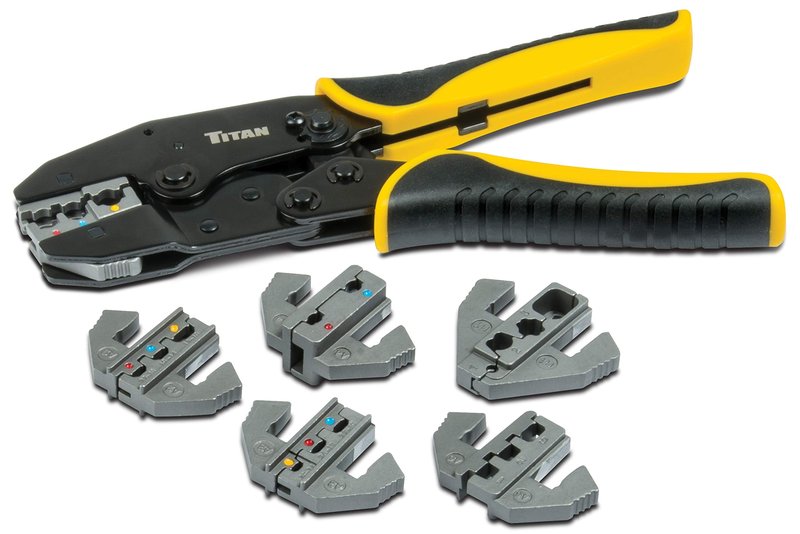

• 7-Piece set comes with 1 ratcheting Crimper and 6 Interchangeable Dies

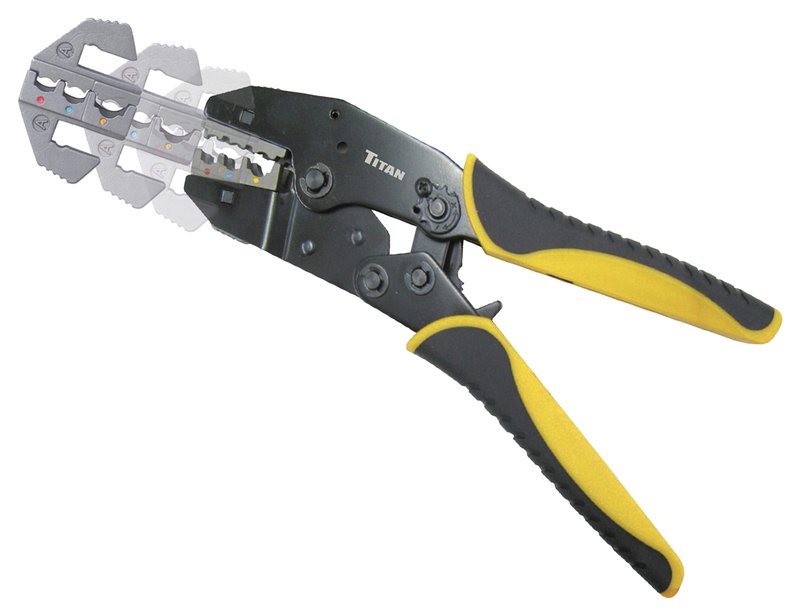

• Quick-change jaw design allows Dies to be easily changed out without the use of other tools
• Ratcheting action and full cycle quick release feature for secure, uniform crimps
• Built in safety release allows Crimper to release Mid cycle
• Corrosion resistant carbon steel frame with comfort grip handles and adjustable compression wheel

model number: 11950

Part Number: 11950

Details: The Titan Tools 7-Piece ratcheting terminal crimping set is built for use with most common types of solderless terminals. The set includes a ratcheting Crimper with an adjustable compression wheel, corrosion resistant carbon steel frame with comfort grip handles and a Collection of 6 interchangeable dies for use with a variety of different terminals. The crimper's Quick Change jaw design allows dies to be easily changed without the use of other tools. The ratcheting action and full cycle Quick release feature ensure secure, uniform crimps and the built in safety release allows the Crimper to release Mid cycle if needed.

Dies Included:

A Die: Insulated Terminals
AWG 22-18 / 16-14 / 12-10
0.5-1.0 / 1.5-2.5 / 4-6 mm²

A2 Die: Fully Insulated Quick-Disconnect Terminals
AWG 22-18 / 16-14 / 12-10
0.5-1.0 / 1.5-2.5 / 4-6 mm²

A3 Die: Mini Insulated Terminals
AWG 26-22 / 24-18 / 22-16
0.1-0.5 / 0.25-1.0 / 0.5-1.5 mm²

A4 Die: Insulated Flag Terminals
AWG 22-18 / 16-14
0.5-1.0 / 1.5-2.5 mm²

A5 Die: Closed End Connector and Heat Shrink Terminals
AWG 22-16 / 16-14 / 12-10
0.5-1.5 / 1.5-2.5 / 4.0-6.0 mm²

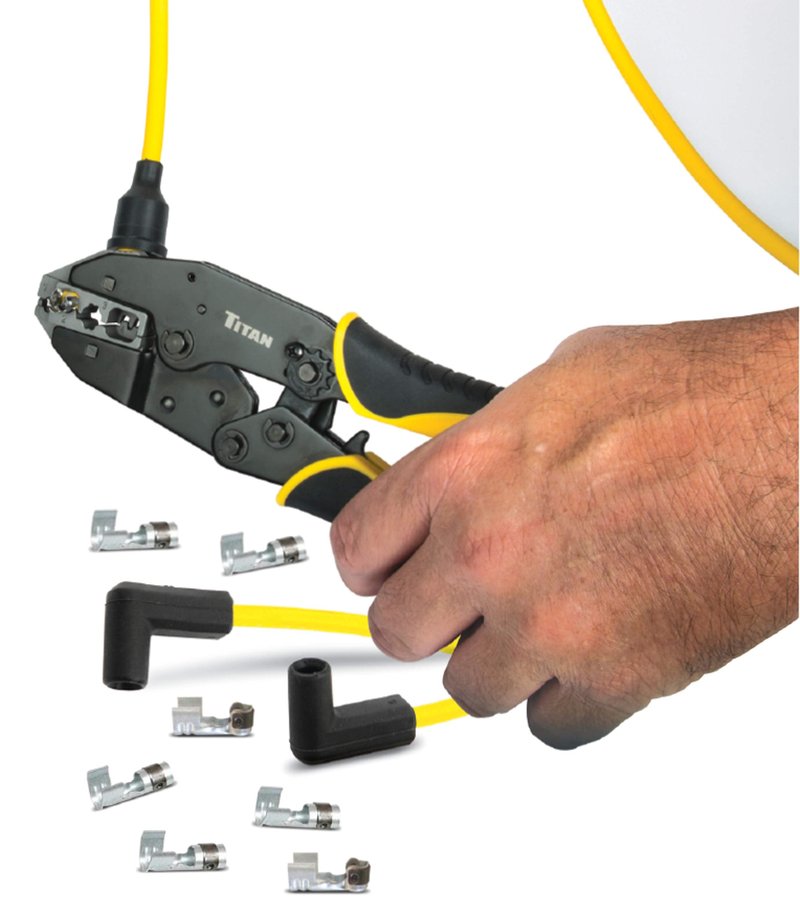

H1 Die: Spark Plug Connectors
AWG 17
1.0 mm²

EAN: 0802090119507

Package Dimensions: 12.6 x 7.8 x 2.1 inches
